Printing knowledge

From documents, paper, binding, craftsmanship, proofing to international delivery, standards, common risks and solutions are explained one by one.

Pre-press personnel check unbranded packaging sheets, book samples and color control strips under neutral light source
Color Control|Global Guide

How to stabilize colors during four-color printing during peak seasons? Lock printing conditions, PDF and approval samples first

ISO 12647-2:2013 is still the published offset printing process control version, covering color separation, proofing, printing plates, OK sheets and formal production, and is also applicable to packaging cardboard. ISO officials also indicate that this version will be revised, and the committee draft to replace it is still under development; therefore, the project should be implemented in accordance with the current version and the written specifications of both parties, and the draft cannot be regarded as a published new standard.

Quotation and production of the first five items:Confirm the product, four-color offset process and actual paper or cardboard first; describe the printing conditions with description, feature data set or ICC output profile; check the color space, RGB input profile, rendering method, font and page version before PDF/X delivery; provide digital samples, printed samples or approved old sheets connected to the same printing conditions; finally, keep the sample light source, approver, date, version and acceptable deviation in the production record.

Control boundaries:"Similar" does not mean that all materials and processes will look the same. Paper whiteness, coating, lamination, varnishing, spot color, metallic color and post-binding look and feel may change the results; the ISO/TC 130 guide also points out that many post-processing qualities are not fully covered by the same set of process standards. Whenever the substrate, ink combination or surface technology is changed, the corresponding sample and acceptance method should be reconfirmed.

FAQ:Is ISO 12647-2:2013 expired? As of August 19, 2026, ISO still lists it as Published, but it has entered revision, and the draft under development cannot be regarded as the official version. Is the proofing just a visual reference? No; proofs must correspond to the agreed printing conditions, materials, versions and approval records before they can be used as the basis for mass production communication.

Official information:ISO 12647-2:2013 Status and Scope · ISO/TC 130 Printing Production Standard Guide · Fogra Offset Process Control Instructions. This article is an independent technical interpretation and does not represent that Gold Printing is ISO or Fogra certified, nor does it guarantee color differences or delivery. Next step:View files and prepare for proofing · Submit material, process and color requirements

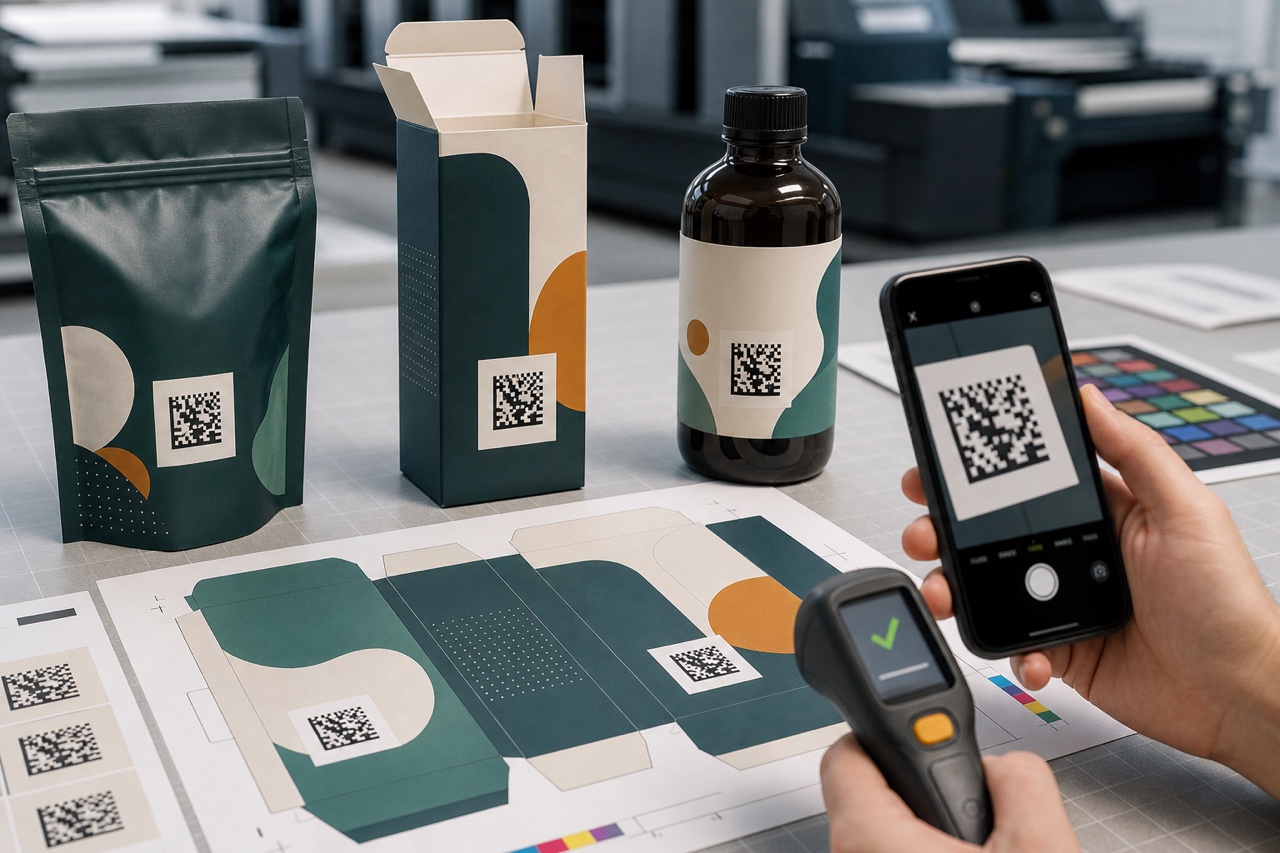

Pre-press personnel check the position, printing quality and scanning results of the 2D barcode on the unbranded packaging sample
Packaging Barcode|Global

2027 Retail 2D Barcode Transition: Five-Step Checklist for Packaging Printing and Scanning Testing

The Retail 2D Barcode Implementation Guide approved by GS1 in December 2025 states that the industry’s initial goal is that by the end of 2027, retail points of sale will be able to read and process GTINs contained in existing 1D barcodes and GS1-compliant 2D barcodes simultaneously. This is a phased global capability goal, not a requirement for all brands to remove 1D barcodes on the same day.

Five steps for packaging implementation:First, the brand confirms the GTIN, application scenarios and data responsibilities with the local GS1 agency; then select QR Code with GS1 Digital Link, Data Matrix with GS1 Digital Link or GS1 according to the scenario DataMatrix; reserve dimensions, quiet zones, and locations on the die that are not prone to wrinkles, reflections, or bends; use actual substrates, inks, laminates, and surface processes to proof and verify print quality; and finally complete end-to-end testing using target retail scanners, mobile phones, and backend systems.

Transition boundary:The 2D barcode can carry GTIN, batch, date or network link, but "can be photographed by a mobile phone" does not mean "can be processed correctly in the cashier system". When the corresponding capabilities are not generally available at the retail end, the packaging must still retain a usable one-dimensional retail barcode; whether to remove, juxtapose or retain it should be jointly confirmed by the brand, retailer and the local GS1 agency. Is

FAQ:2027 a forced code change dead line? No; GS1 defines it as a retail POS capability goal, and each market transitions on a different schedule. Is the design draft completed after inserting the QR code? No, the size, contrast, quiet zone, reflection, bending and scanned data must still be checked with the actual material and finished product form.

Official information:GS1 Retail 2D Barcode Implementation Guide · GS1 Retail POS 2D Capability Description. This article is an independent packaging and printing interpretation, and does not represent cooperation with GS1, certification or compliance guarantee. Next step:View packaging printing range · Submit die and barcode testing requirements

Pre-press engineering staff checks document pages and color information

Document Standard

File technical knowledge

Explains the finished product size, bleed position, safety margin, CMYK, image resolution, font, black, spot color, overprinting and PDF output standards item by item.

Selection of paper and publishing materials for books and periodicals

Paper material

Paper material

Weight, thickness, stiffness, paper grain, whiteness, opacity, coated vs. uncoated paper, and the effect of paper on color and readability.

Sewing and binding methods for books and periodicals

Binding method

Binding method

Applicable number of pages, durability, flat performance and cost differences for saddle stitch, perfect binding, PUR, stitched, hardcover, board book and YO circle.

Hardcover book case, spine ring and collection box

Hardcover structure

Hardcover structure

The cooperation relationship between book case, gray board, book block, ring lining, spine, flutter, plugging cloth, ribbon, cover, book cover and collection box.

Hot foil equipment performs gold foil surface processing on dark green paper

Surface process

Surface process

Material restrictions and registration requirements for lamination, foiling, embossing, debossing, partial UV, die cutting, creasing, pasting and box gluing.

Printing proofing and customer confirmation process

Proofing confirmation

Proofing confirmation

What can be confirmed by digital samples, color samples, paper white samples, structural samples and complete production samples, and how approved samples can be entered into bulk goods control.

Printing quality inspection and production control

Quality Inspection

Quality Inspection

Control node for incoming materials, first article, color, page sequence, registration, binding, appearance, size, quantity, packing and shipment inspection.

Arrange international delivery of printed matter by pallet, container, sea and air freight

International delivery

International delivery

Preparation of data for single piece protection, outer box strength, box marks, pallets, batches, multiple addresses, sea and air transportation, and arrival acceptance.

Printing Q&A

Organized by work stage, click to view the answers.

Quotation Item

1. What do I need to provide for quotation?

An accounting printing quotation requires at least four sets of information. The first is the product: books, color boxes, hard boxes, labels or other paper products; the second is the specifications: finished size, number of pages or structure, materials, printing colors, binding and surface craftsmanship; the third is quantity: the target quantity and the quantity ladder to be compared; the fourth is delivery: expected date, country of receipt, city and zip code. If you already have design files, molds or reference samples, please provide them together. You can inquire first if the information is temporarily incomplete, but the quotation will indicate which contents are tentative conditions and must be confirmed item by item before formal production.

2. I am not sure about the paper or process. Can I ask first?

Yes. First explain the product purpose, target customers, usage environment, quantity, budget direction and the visual or tactile feeling you want to achieve, and we will provide two to three comparable solutions. For example, books and periodicals will compare paper whiteness, thickness, flipping and weight; packaging will compare stiffness, load-bearing, surface craftsmanship and transportation protection. It is recommended to use paper samples, material samples or white samples to narrow down the selection before deciding whether to make a complete printing sample; this is more accurate than guessing the material based on photos only, and can also avoid discovering that the process cannot be realized after the design is completed.

3. Why does the unit price change if the quantity is different?

Customized printing includes both fixed costs and quantity costs. The costs of pre-press inspection, plate making, start-up preparation, color matching, die cutting, hot stamping plates and partial proofing will not increase equally with each product; paper, ink, binding, labor, packaging and transportation will change with the quantity. After the quantity increases, the fixed costs are shared by more finished products, and the unit price usually decreases, but the material utilization rate, the suitable production range of the machine, the packing weight and the transportation method will also form a new ladder. Therefore, the unit price of one quantity cannot be directly multiplied or divided to calculate another quantity. It should be recalculated for each quantity.

4. Can several quantities be compared at the same time?

Yes, it is usually recommended to compare two to three truly possible purchase quantities, such as 1,000, 2,000 and 5,000 pieces. When comparing, don't just look at the unit price, but also look at the total amount, one-time cost of materials or molds, storage pressure, usage cycle, version update risk and reprinting costs. Too many quantity ladders will reduce quotation efficiency, and may also be misleading due to different paper, machine and transportation plans; if the demand span is large, the first batch of quantities and expected annual usage should be determined first, and then the first order and replenishment plan should be designed.

5. Will the website disclose the base price or internal formula?

will not disclose internal costs, floor prices, profit formulas, supplier information or other customer data, but customers should understand what they are buying. A formal quotation will set out product specifications, quantities, materials, printing, binding or workmanship, samples, packaging, delivery method, validity period, and included and unincluded charges. When price adjustments need to be made, comparable versions should be formed by changing quantities, materials, structures, processes or delivery plans, rather than replacing complete specifications with an unverifiable "lowest price".

File Design

6. How much bleed is generally required for printing documents?

Generally used for flat printing is 3 mm per side; packaging, die and special shapes are subject to confirmed production requirements.

7. What resolution is required for the image?

The original size is usually recommended to be about 300dpi; small web images, chat screenshots and enlarged images may not be enough.

8. Can RGB be printed directly?

Printing generally uses CMYK or designated spot colors. Color differences may occur after RGB conversion, which should be processed at the proofing or color confirmation stage.

9. Which is more suitable, PDF, AI or InDesign?

The final version is usually submitted as a PDF containing bleeding and embedded fonts; when adjustments are required, the source file, linked image and font data should also be provided.

10. Do I still need pre-press inspection if I already have a design draft?

Required. Dimensions, bleeds, safety margins, colors, graphics, fonts, page order, spot colors, and die layers still need to be checked.

Book binding

11. What kind of booklet is suitable for saddle stitching?

Saddle stitch fixes the folded signature at the spine with metal nails. It is suitable for brochures, event journals, instructions and short-form brochures with fewer pages and thin book blocks. When making a judgment, you should not just look at the number of pages, but also the thickness of the paper, the format, the cross-page design and the crawling of the middle page; the thicker the paper, the more obvious the inner pages will push out, and the centering of the inner and outer pages may not be consistent after cutting. When there are a large number of pages, long-term reading, spine printing or higher durability, you should compare the perfect binding, PUR or thread-locking solutions. Before formal production, the actual paper should be used to check the total thickness, staple position, page turning and cutting effects.

12. What is the difference between glue binding and thread-locking glue binding?

In ordinary perfect binding, the arranged signatures or loose pages are glued on the back of the spine, and then the cover is wrapped; in thread-locking perfect binding, each signature is first sewn into a book block with threads, and then the backing and wrapping are completed. The locking thread forms an additional mechanical connection and is usually more suitable for books with a large number of pages, frequent flipping, better spreadability or a longer shelf life; ordinary perfect binding requires fewer processes and is suitable for regular reading materials and cost-sensitive projects. You also need to compare the paper coating, weight, book block thickness, format and usage environment. You cannot choose based on price alone. The sample book should be checked for dropped pages, cracked pages, empty spine, resistance to reading, and stability after repeated opening and closing.

13. What structure should be confirmed for hardcover books?

A hardcover book does not just replace the cover with a hard board. The thickness of the book block determines the spine, the thickness of the gray board affects the book case, the groove position controls the opening and closing, and the flutter determines the distance of the book case beyond the book block; the ring lining, gauze, backing paper, plug cloth, spine shape and jacket must also cooperate with each other. When the number of pages, paper, or binding is changed, spine and case dimensions must be recalculated. The formal sample should check the book block positioning, book edge squareness, groove opening and closing, ring lining bonding, book case warping, cover process registration and the consistency of the spine arrangement of multiple books.

14. Why do children’s board books have rounded corners?

The Banzai book uses thicker cardboard. If the right angles are too sharp, it will easily form uncomfortable hard corners when flipping, falling or carrying. Rounded corners can improve the touch feel and collision resistance, but rounded corners alone cannot represent product safety. Also evaluate target age, board thickness, mounting bonding, lamination or varnishing, ink and material requirements, and whether there are burrs, delaminations and sharp spots after die cutting. The fillet radius must match the format, safety edge of graphics and text, and page turning feel. Before formal production, white samples and finished samples should be used to actually flip, scratch, and check the edges.

15. What are the uses for YO circle books?

YO loop/double loop binding is suitable for desk calendars, teaching materials, exercise books, recipes and activity books that need to be completely flattened, folded or frequently written. Before designing, it is necessary to confirm the direction of the finished product, the punched edge, the hole spacing, the safe distance between the hole edges, the thickness of the book block and the circle diameter; if the circle diameter is too small, page turning will be blocked, and if the circle diameter is too small, it will become loose and increase the packaging space. Cross-page content and important text should be kept away from the holes, and the durability of the cover material after repeated folding should also be considered. The acceptance of finished products should check the hole position, closed loops, missing loops, page sequence, page turning smoothness and whether the coil is deformed after packaging.

Packaging label

16. Why do we need to make a white sample of the packaging box first?

The white sample is a structural sample that is not printed or simply marked. The purpose is to verify the structure at a lower cost before going into printing, foiling and batch die-cutting. It is necessary to put the actual product into the white sample and check the inner dimensions, tolerances, opening and closing, insert tongue, lock bottom, magnetic suction, pick and place direction, inner support fixation, load-bearing, stacking and outer box loading. It is impossible to find problems with cardboard thickness, fold line rebound, life collision or difficulty in removing the product by just looking at the flat die. If the product size, material thickness or inner support changes after the white sample is approved, re-verification is still required.

17. How to choose between color box and hard box?

Color boxes are usually printed, die-cut, folded and glued from cardboard or micro-corrugated paper. They are lightweight and can be flattened for transportation. They are suitable for retail goods and projects that need to control logistics volume. Hard boxes are made of hard cardboard such as gray board as the skeleton, and then pasted with printing paper or special materials. They have higher stiffness, display feel and long-term storage, but the labor, material and transportation volume are usually higher. When choosing, you need to compare product weight, retail price, unboxing experience, load-bearing, drop, display, warehousing, annual quantity and budget, rather than simply using "high-end / ordinary" dichotomy. For both structures, white samples should be taken first to verify product tolerances and packaging.

18. Should I choose paper, EVA or blister for the inner support?

The paper tray is convenient for printing and paper base recycling, and can fix products through folding, clamping and honeycomb structures; EVA has strong buffering and positioning capabilities and is suitable for fragile or high-priced products, but the color, density, odor, surface treatment and recycling path must be confirmed; blister can accurately fit complex shapes and facilitate batch assembly, but requires molds, and the materials and target market requirements must also be evaluated. Before selection, the physical product, weight, center of gravity, vulnerable parts, pick-and-place method and transportation test requirements should be provided. The inner support sample should be checked for shaking, scratching, falling, inversion, space for fingers to pick up objects, and deformation after long-term pressure.

19. How to choose label glue?

First confirm whether the object to be labeled is glass, metal, plastic, carton, rough surface or low surface energy material, and then confirm the labeling temperature, use temperature, humidity, water, oil, freezing, outdoor light and storage period. Permanent adhesive emphasizes long-term adhesion, while removable adhesive requires less adhesive residue after being removed. Freezing adhesive, tire adhesive and special surface adhesive are designed for specific environments. Small areas, curved surfaces, bottle seams and recycling requirements will also change choices. Before formal production, initial adhesion, 24-hour adhesion, peeling and aging tests should be carried out in actual containers and actual environments. You cannot place an order based on the name of the glue alone.

20. Why does it need to confirm the roll direction for machine labeling?

The automatic labeling machine unwinds from a fixed direction and sends the label to the designated position of the product. Therefore, the text orientation, label head and tail, left or right exit will directly determine whether the equipment can be used normally. In addition to the labeling direction, the inner diameter of the paper core, the maximum outer roll diameter, the number of each roll, the label spacing, the width of the bottom paper, the die-cutting depth and the number of joints must also be confirmed. Wrong roll direction may cause the entire batch of labels to fail to be put on the machine, or require manual rewinding, which increases contamination, loss and delivery time. Before production, the customer should provide the labeling machine specifications or an existing sample roll, and confirm it in writing with a clear roll direction diagram.

Sample inspection

21. Are digital samples equal to official printing colors?

Not exactly equivalent. Digital samples are suitable for checking text, page sequence, layout, picture direction and overall color trend. However, the imaging method of digital equipment is different from that of formal offset ink. Paper whiteness, coating, ink absorption, spot color, hot foil, lamination and glazing will also change the final effect. If the project has high requirements for brand color, skin tone, gray balance or artistic images, contract color samples, actual paper samples or computer control methods should be agreed upon. When approving a digital sample, it must be stated whether the content, layout or color direction is approved. This should not be understood as a final commitment to all materials and processes.

22. What are the differences between white samples, digital samples and craft samples?

The white sample mainly verifies the size, structure, opening and closing, assembly and load-bearing; the digital sample mainly verifies the text, page sequence, layout and general color; the color sample is used to establish a stricter color reference; the process sample uses actual or close to actual materials to check foiling, UV, embossing, lamination, mounting, pasting boxes and inner supports. Each sample can only answer specific questions, and you can't use a white sample to approve a color, or a digital sample to approve a hot stamping attachment. The approval record should indicate the sample number, version, material, scope of approval and matters still to be confirmed.

23. Can hot stamping, UV and embossing be done together?

can be evaluated, but the material, process sequence, pattern distance and registration tolerance must first be determined. The coating or ink surface will affect the adhesion of the hot foil and UV. The embossing will change the flatness of the paper. Overlapping processes may cause cracks on the foil surface, UV shrinkage holes, embossing damage or unstable positioning. When designing, separate spot color layers should be established for each process to avoid cutting lines, fold lines and excessively thin text; process testing or complete samples should be done first, and then the foil color, gloss, depth, position and acceptable variation should be approved. The combination of craftsmanship should serve the reading and brand focus, not the more the better.

24. When does the production delivery start?

The production delivery period usually starts after all production conditions are met, not from the date of the first inquiry or the first upload of documents. Conditions including specifications, quantity, price, materials, final documents, samples or proofreading, packaging, delivery methods and agreed payment nodes have all been confirmed; special paper, molds and outsourced processes will also be included in the material arrival time. The formal schedule should list customer confirmation, materials, printing, binding or molding, quality inspection, packaging and shipping nodes. Any changes to confirmed content will require a re-evaluation of the costs and dates affected.

25. How to inspect the goods when receiving them?

When receiving the goods, first check the pallets, outer boxes, seals, moisture, impact damage and box marks. Check the number of boxes before opening the boxes for random inspection. Products must be checked against approved samples and specifications for size, content version, page sequence, color, binding, structure, surface workmanship, quantity and obvious appearance defects. When an abnormality is discovered, do not discard the packaging immediately or mix all the goods. You should take pictures of the six sides of the outer box, labels, affected locations, recent photos of the product, and random inspection quantities. Keep representative physical objects and notify the project personnel as soon as possible. This evidence is used to differentiate between production, packaging, shipping and receiving, and to determine options for quarantine, replenishment, rework or claims.

Delivery Support

26. Can it be delivered to companies, schools or exhibitions?

Yes, but the delivery conditions vary greatly from site to site. Before quoting, you must provide the complete address, postal code, contact person, telephone number, delivery date and time, floor, elevator, platform, forklift, unloading distance, vehicle restrictions and whether an appointment is required for admission. The exhibition also needs to check the exhibition hall, booth number, designated logistics provider, certificates, limited time entry and overtime fees; schools or large institutions may require department labels, purchase order numbers or fixed receipt windows. These conditions will affect the vehicle model, labor, packaging, box markings, timeliness and costs, and should be written into the formal delivery plan.

27. Can it be delivered in batches or to multiple addresses?

Yes. An address allocation table needs to be established to list the product version, quantity, number of boxes, box marks, consignee, phone number, postal code, delivery period and special requirements for each address one by one. During production and packaging, boxes must be divided according to address to avoid splitting the goods again after arriving at the warehouse, resulting in mixed versions and short quantities; each batch of goods must have an independent packing list, tracking number and delivery status. If urgent items are shipped by air first and the remainder by sea, the quantity, documentation, packaging and acceptance of the two batches should also be managed separately.

28. Can you arrange for a dedicated person to connect you?

Yes. After the project is started, a main contact person can be designated to receive specifications, versions, quotations, samples, schedules and exception information to avoid conflicts caused by multiple people issuing separate orders. The customer should also designate a person who has the authority to confirm documents, prices and delivery dates; input from design, procurement, finance and consignee can be summarized by the main contact person. Important decisions will still be recorded in written records and version numbers, and dedicated personnel docking does not mean skipping engineering, quality or authorization confirmation.

29. Can you arrange door-to-door service?

Can first be assessed based on the project location, needs and necessity. Situations suitable for on-site visits include physical measurement, packaging structure confirmation, important color samples or material discussions, batch product assembly testing and major abnormality verification; general quotations, file transfers and routine proofreading can usually be completed online first. Before making an appointment, confirm the purpose of the visit, participants, address, time, samples or products that need to be prepared, and expected output, so as to avoid lacking decision-making information after visiting the door. The specific service scope, fees and confidentiality requirements shall be confirmed in writing by both parties.

30. How to transfer labor or create a work order?

Leave questions and contact emails in the live Q&A on this site; when it comes to orders, complaints, identity information, file failures, or content that cannot be confirmed by the system, you can create a service ticket. The ticket should include the product or page, problem description, time of occurrence, project number, affected quantity and necessary screenshots, but do not submit passwords, verification codes, complete payment card information or keys. The system will generate a traceability number, and subsequent supplementary information should use the same number to avoid the same issue being split into multiple records that cannot be compared.

Projects and Services

31. Can the size or structure be customized?

Yes, but customized sizes must first confirm the use, content or physical product, transportation method and production restrictions. For books and periodicals, the format, number of pages, paper utilization, binding and spine must be checked; for packaging, product length, width, height, weight, tolerances, picking and placing directions, load-bearing, cutting molds, inner supports and cartoning must be checked. After providing accurate finished product dimensions, physical or three-dimensional dimensions of the product, reference drawings and existing molds, the engineering staff will first determine the material and processing feasibility; if necessary, make white samples to test opening and closing, assembly and load-bearing, and then lock in the printing documents and official price after confirmation.

32. What is the minimum order quantity?

There is no unified minimum order quantity that applies to all printed matter. Offset printing requires plate making and start-up preparation, and spot colors, hot foils, dies, special materials, and manual molding may also have their own minimum production batches; digital printing can support smaller quantities, but the unit price, size, paper, and process selection are different. Please provide your target quantity, acceptable budget, whether replenishment is needed and estimated annual usage, and we will compare appropriate production methods and two to three quantity steps. The lowest quantity that can be done is not necessarily the quantity with the most reasonable total cost.

33. How to choose paper or cardboard?

First judge based on the purpose: books and periodicals pay attention to reading, page turning, thickness and weight; packaging pays attention to stiffness, folding lines, load-bearing and shaping; artworks also need to consider whiteness, texture, ink absorption and color gradation. Gram weight only represents the weight per square meter and is not equal to thickness or stiffness. Coated paper, uncoated paper and specialty paper with the same weight may behave completely differently. Also check paper texture, masking properties, surface coatings, certifications, print colors, foil or UV suitability, and shipping weight. Before formal production, paper samples, material samples, test folds, white samples or complete samples should be confirmed according to risk.

34. Will production start for unconfirmed specifications or samples?

No. Before entering formal production, at least the specification version, quantity, materials, printing documents, binding or structure, surface technology, packaging and delivery date must be locked; when both parties agree that white samples, digital samples, color samples or process samples are required, it is also necessary to clarify what is approved for each sample. Approval of structure does not equal approval of color, and approval of color does not equal approval of textual content. The final approval should leave a file name, version number, date and confirmation record; any changes to the approved project require a re-evaluation of price, risk and delivery time.

35. What information is needed to estimate shipping costs, duties and import taxes?

The freight requires at least the receiving country, city, postal code, address type, expected time limit, whether there is unloading equipment, as well as the number of boxes of goods, outer box size, single box gross weight, total volume and pallet information; before production, it can only be calculated based on estimated packaging, and should be reviewed with actual data after completion. Customs duties and import taxes also need to confirm the product name, material, purpose, HS code, origin, declared value, importer's identity and destination country rules. The quotation must state the terms such as EXW, FCA, FOB, CIF, DAP or DDP and the precise location, because the terms determine who is responsible for transportation, insurance, customs clearance and taxes. The final amount is subject to the official logistics quotation, customs identification and contract.

36. How are finished products usually packaged?

Packaging solutions start with product risks and actual transportation routes. Books and periodicals usually need to be protected against scratches, corners, moisture, and shifting within the box; premium boxes need to protect the mounting surface, hot foil, magnetic suction, and box corners; label rolls need to have fixed roll directions, paper cores, and end faces. Then determine the quantity of each box, the strength of the outer box, the inner pad, plastic bag or shrink film, moisture-proof material, box label and whether to put it on the pallet according to the transportable weight of the single box. Ocean shipping also needs to evaluate humidity, container condensation, stacking and multiple transfers; special container specifications, branded container marks, barcodes and sub-address identification must be confirmed before production.

37. What should I do if the quotation information or files cannot be uploaded temporarily?

Keep the filled-in quotation information and original documents first, and do not fill them in again and again. You can first check the network, file format and file size; if you still cannot submit, please email the product name, size, quantity, material, process, delivery location, contact information and original documents directly to info@goldprinting.cc. The subject of the email should be "Supplementary Submission of Quotation Information". After receiving it, Gold Printing will continue to quote based on the original project, and at the same time troubleshoot website upload issues, and will not ask you to do it all over again.

38. Can I ask customer service to modify the website, price or order directly?

You can make modification requests, but customer service will not directly change the website, official price, production documents or orders based on just one sentence of chat content. When quotations and orders are involved, the contact person and project number must be verified first, and the specific items that need to be modified, the original version, the new version, the price and the impact on delivery date are recorded, and then confirmed by authorized project personnel; when website content or functions are involved, a change application will be registered and the impact check completed. This is done to prevent erroneous changes caused by unknown identities, unclear expressions or wrong versions, and does not affect customers' normal suggestions and correction of real errors.

Industry Information

Information covers global printing and packaging, publishing and book fairs, advertising brands, culture and art, sports activities and industry trends; only content with clear dates, locations and official websites is included, and third-party announcements are not rewritten as company performance.

Text-free prepress table with a bound photo proof, crisp and pixelated botanical image samples, a loupe and an abstract grayscale monitor
Prepress imaging and PDF guide | Global

A smaller file does not prove print images are fit: six PDF downsampling checks

Adobe's 2026 InDesign guidance treats colour, grayscale and monochrome images separately when setting a downsampling method, trigger threshold and compression. JPEG, ZIP, JPEG 2000 and CCITT do not make the same trade-off. A separate Adobe troubleshooting note also explains that scaling in a layout changes effective PPI and that very high-resolution placed images can increase the work required during export. A smaller attachment, a clean screen view or a familiar preset name therefore does not by itself prove that a print PDF retains the image detail the job needs.

  1. Lock the output purpose and printer requirements: Record finished size, viewing distance, printing process, stock and the printer's specification. A screen PDF, review proof and production PDF may need different settings. Do not present one PPI or quality value as a universal pass line before the real output conditions are known.
  2. Check effective PPI at final layout size: Do not rely only on an image's Actual PPI. Scaling down in the layout raises Effective PPI, while enlarging lowers it. Review every image at its final crop, scale and position, then list images below the target or far above what the job needs as exceptions.
  3. Record both the downsampling target and trigger: Downsampling is not one number. State which images are processed only above which threshold and whether average, subsampling or bicubic resampling is used. Keep colour, grayscale and monochrome rules separate instead of hiding them behind one vague setting.
  4. Choose compression for the content, not just the smallest file: JPEG removes data to make smaller files; ZIP can retain data losslessly and suits flat colour or repeating patterns; monochrome content has options such as CCITT. Photographs, gradients, line art, charts and scanned pages should be judged by what they contain.
  5. Declare whether cropped image data must remain: Exporting only the visible area of a frame can reduce size, but removing data outside the frame also reduces room for later repositioning, bleed extension or recropping. State whether post-processing may move images instead of looking only at today's layout.
  6. Lock the preset, final PDF and inspection evidence: Keep the actual PDF preset or joboptions, export summary, final PDF SHA and exception list. Inspect critical faces, fine lines, textures, gradients and image-based small type at final size, then have the named approver use a suitable proof or output check for the intended process.

Scope and approval: This guide summarises Adobe's public principles for PDF export, downsampling, compression, presets and optimisation. It does not prescribe one PPI or compression value for every stock, screen ruling, press, process or viewing distance, and it does not claim that Gold Printing uses Adobe products. Buyer and printer must agree the actual settings and approval evidence for the locked layout, image content and production conditions.

Book printing · Box printing · Request a quote

Frequently asked questions

Does a larger PDF always mean better print images? No. File size can also come from cropped-out data, editing information, fonts and other objects. Check effective PPI, compression and critical images in the final layout instead of comparing file size alone.

Can Smallest File Size be used as a print handoff preset? Do not decide from the name alone. Adobe positions it for web, email and intranet distribution. Obtain the printer's specification first, then lock and verify a suitable production preset.

Adobe — PDF export options · Adobe — Downsampling and effective PPI · Adobe — PDF presets · Adobe — PDF optimisation options

Top-down text-free prepress table where a loupe reveals a narrow overlap between two solid inks, beside a sample showing an uncompensated white registration gap
Prepress and trapping guide | Global

Overprint visible does not mean trapping is done: six PDF handoff checks

Adobe's InDesign guidance, updated in June 2026, describes trapping as a slight overlap between adjoining ink areas that compensates for press misregistration and helps prevent white gaps; it also says not every document needs the same treatment. Acrobat Output Preview can inspect separations, simulate overprint and flag total ink coverage, but Adobe explicitly says it cannot preview trapping itself. A clean screen, enabled overprint preview or a routine PDF preflight therefore does not by itself prove that production trapping was generated and approved correctly.

  1. Name the single owner of trapping: State whether traps are created by the layout application, at output or in the RIP, and confirm what the actual output device supports. Do not trap once in artwork and again in the RIP, or assume an exported PDF inherits an undocumented setting.
  2. Record stock, process and registration conditions: Trap widths and thresholds depend on substrate, screen ruling, inks, printing process and press condition. Put the intended materials and production route in the handoff; a default preset is only a starting point, not a cross-press guarantee.
  3. Identify process, spot and specialty inks at every boundary: Adjoining process builds that share an ink component may need little or no trap, while spot colours with no common component can be more sensitive. Metallics, varnishes and technical colours such as dielines must be identified as printing, overprinting, retained or excluded.
  4. Check page assignments, exceptions and placed artwork: Verify that the intended preset is assigned to the right pages. Book documents, placed PDFs or vectors, bitmap images and hairlines cannot be assumed consistent because preset names match. Flag black text, reverses, fine rules and image edges for focused review.
  5. Separate screen preview from trapping evidence: Use Output Preview for plates, unintended spots, overprint behaviour and total ink coverage, but label it as an onscreen inspection. Adobe notes that it does not show trapping, printer marks or screening, so the real output workflow and a suitable proof must provide that evidence.
  6. Approve a locked PDF, output setup and physical proof: Keep the final PDF SHA, trapping owner, preset or RIP version, exceptions and output report. Use an integral or overlay proof for fine reverses, spot-colour joins, black edges and critical images, then have the named approver sign off against the intended stock and process.

Scope and approval: This guide summarises Adobe's public trapping and Output Preview principles. It does not prescribe one trap width for every stock, ink set, screen ruling, press or RIP, and it does not claim that Gold Printing uses Adobe software or a particular trapping engine. The buyer and printer must agree actual values, exceptions and approval evidence for the locked file, materials, output system and proof.

Book printing · Box printing · Request a quote

Frequently asked questions

Does Overprint Preview confirm that traps exist? No. It helps inspect how colour plates interact, but Adobe states that Acrobat Output Preview does not show trapping. The production output settings and a suitable proof still need to be checked.

Should the designer or printer choose the trap width? First assign one accountable owner. The prepress party with the actual stock, screen ruling, inks, process and press condition should then set and record the value instead of applying an unconditional generic number.

Adobe — Ink trapping · Adobe — Apply trap presets · Adobe — Trap preset options · Adobe — Output Preview limits

Overhead text-free saddle-stitched booklet mock-up with nested folded sheets showing progressive fore-edge creep, beside an unmarked metal straightedge and paper trim strips
Binding and imposition guide | Global

Aligned pages do not guarantee aligned trim: six handoff checks for booklet creep and imposition

Adobe's InDesign guidance updated on 2 June 2026 describes a saddle-stitched booklet as sheets nested, folded and fastened through the spine, with creep used to compensate for the incremental shift caused by paper thickness and folding. Fiery's official guidance likewise notes that the effect becomes more significant with heavy stock or more sheets: trimming can make the edges even, but it does not automatically return the content area that moved with each sheet. A single-page PDF that looks aligned is therefore not approval of the margins after folding, stitching and trimming.

  1. Lock the binding method, edge and finished size: State saddle, nested saddle or another binding method, then confirm left, right or top binding, the TrimBox, opening direction and trim edge. Binding controls page order on the press sheet; the word booklet is not a complete production specification.
  2. Treat final page count and blanks as version data: Saddle-stitched work is assembled in four-page sheet units, and an imposition system may add blanks when the total is not divisible by four. Identify covers, body pages, intentional blanks and system-added blanks, then reapprove the imposition whenever pagination changes.
  3. Confirm the actual body and cover stocks: Record stock, weight, finish, total sheet count and mixed-media use. Creep depends on the folded build and each sheet's position; a paper-weight label or a design estimate is not a substitute for the stock that will run.
  4. Assign one owner for imposition and creep: Buyers normally supply single pages in reading order and the print provider imposes them for the actual sheet, stock and equipment. If an imposed PDF is requested, lock the version and parameters in writing. Do not apply compensation once in artwork and again at the RIP.
  5. Review live area, bleed and crossovers together: Creep changes where content sits relative to the spine and fore-edge. Inspect folios, rules, narrow columns, small type near trim and crossover images. Keep sufficient bleed and live-area clearance; final trimming is not a reason to waive these checks.
  6. Approve a folded, stitched and trimmed result: Review the imposition preview or summary, then make a folded dummy or production proof on the intended stock. Approve sequence, blanks, margins, crossovers, stitch position and final trim, and retain the PDF, imposition settings, stock batch, sample and approval revision.

Scope and approval: This guide summarises Adobe and Fiery's public booklet-imposition and creep principles. It does not provide one compensation value for every stock, page count, folder, stitcher or trimmer. The actual imposition, creep direction and value, blanks, bleed, live area and finished approval must be agreed by the buyer and actual print provider against locked files, materials, equipment and a physical sample.

Book printing · Magazine and periodical printing · Request a quote

Frequently asked questions

Should a buyer impose saddle-stitched pages before sending the PDF? Usually not. Supply single pages in reading order and let the printer impose for the real sheet, stock and equipment. Send imposed artwork only when the provider supplies a written specification.

Does trimming the fore-edge solve creep by itself? No. Trimming evens the paper edge, but uncompensated content may still move close to the trim or be clipped. Imposition compensation and a finished physical check are still required.

Adobe — Booklet types · Adobe — Adjust creep settings · Adobe — Preview booklet printing · Fiery — Compensate creep

Overhead text-free print-automation desk linking blank job cards, an imposed sheet, a metal printing plate, a printed sheet and a folded proof
Print-automation guide | Global

Passing XML is not the same as being press-ready: six handoff checks for XJDF conventional-printing interfaces

CIP4 published the first XJDF Conventional Printing ICS 2.2 on 27 April 2026 to define standardised interfaces between MIS-driven workflows and systems involved in prepress and conventional printing. CIP4 describes XJDF as a pure information-interchange interface between management and executing applications; an ICS narrows the full specification to a use case and defines roles, required messages and data elements. Sending valid XML therefore proves that data left one system, not that the receiver understood the same product, process, resources, status or approval conditions.

  1. Lock the interface use case and both sides' roles: State whether the connection is MIS to conventional printing, MIS to prepress or another ICS scenario. Name the system acting as Manager, Controller, Device or Worker. Do not treat the full XJDF specification, one ICS and a vendor's private API as the same interface.
  2. Keep job and product identity unique end to end: Create traceable identifiers for the order, job, product, revision and rerun, and define who may create, update or close each one. When several products follow one route, retain each product's quantity, specification, content file and delivery mapping so a revised PDF cannot attach to an old job.
  3. Exchange only the process and resource data the device needs: XJDF focuses each exchange on one executing application. Lock quantities, substrate, sheet, colours, imposition, plates, output file and finishing conditions for that interface. Mark required and optional fields, units, allowed values and missing-data behaviour instead of relying on operator guesses.
  4. Define message, response and error semantics: Assign responsibility for submission, acknowledgement, status query, progress, completion, rejection, cancellation and retry messages. Agree timestamps, timeouts, duplicates, out-of-order events and unknown values. An HTTP response or received file is not evidence that the production job was accepted.
  5. Prove that prepress output becomes the intended press input: Run one controlled job from planning through imposition, plate production and printing. At every boundary, reconcile page order, sheet size, plates, colours, stock, quantity and revision. Any local mapping or Gray Box completion needs an owner and a traceable rule.
  6. Approve an end-to-end result, not a format label: CIP4 notes that two systems may still fail to understand each other even when both follow JDF, because implementations and optional assumptions differ. Test submission, execution, reporting, exceptions, cancellation, recovery and the final physical output; retain versions, message evidence, variances, approval and rollback steps.

Scope and approval: This guide summarises CIP4's public XJDF and ICS interface principles. It does not claim that Gold Printing, a buyer's MIS, RIP, CTP, press or any vendor is certified, integrated or approved for unattended production. Actual fields, device capabilities, private extensions, network security, test cases, error handling and production approval must be agreed against locked versions by the buyer, supplier, integrator and actual print provider.

Packaging printing · Book printing · Request a quote

Frequently asked questions

Does exporting an XJDF file mean the device can run the job automatically? No. Confirm the applicable ICS, roles, mandatory fields, status messages, error semantics, implemented device scope and an end-to-end physical result.

Does ICS 2.2 replace the printer's job ticket and approval process? No. An ICS defines minimum interface expectations. Internal tickets, private data, material and device limits, proofing, operation and final production approval remain separate controls.

CIP4 — XJDF Conventional Printing ICS 2.2 release · CIP4 — What is (X)JDF · CIP4 — What is an ICS · CIP4 — Current specifications

Overhead text-free spot-colour prepress desk with a carton dieline, book-cover proof, six colour swatches, loupe and colour-measurement tool
Prepress guide | Global

A screen match does not mean one ink plate: six handoff checks for spot-colour separations

Adobe updated its spot-colour, Ink Manager and output-preview guidance in June 2026. Spot colours output as separate premixed inks and plates; Lab or CMYK values affect preview and conversion, not the spot definition itself; and Ink Manager can convert a spot to process or alias duplicate inks at output. Two PDFs that look alike can therefore create extra plates, merge the wrong artwork or convert differently. The handoff should lock the physical ink, canonical name, alternate appearance, output mapping, final separations and physical approval as separate decisions.

  1. Define the ink set that will actually print: State whether the job requires a separate premixed spot ink, standard CMYK, or an approved spot-to-process conversion. Lock the substrate, finish, metallic or fluorescent effect, expected plate count and the colour system supported by the print provider. A screenshot or colour code is not a production specification.
  2. Create one controlled ink-name and plate inventory: List every exact spot-colour name found in the main file, placed artwork and final PDF, together with its intended plate and use. Similar-looking swatches with different names must not be assumed to be one ink. Any merge needs an approved retained name, alias mapping, owner and version so imported artwork cannot add an unnoticed plate.
  3. Separate the spot definition from its alternate appearance: Adobe notes that Lab or CMYK settings affect display and spot-to-process conversion; they do not redefine the premixed spot ink. Record the Lab or CMYK appearance method, colour-management setup and output condition, while using a physical swatch or approved proof as the colour target.
  4. Freeze every Ink Manager output decision: Ink Manager can convert spots to process, alias duplicate spots to one plate and set neutral density without changing the document's colour data. These are output behaviours. Record conversions, aliases, preserved spots and density settings in the final job ticket or frozen PDF workflow rather than leaving them as temporary operator choices.
  5. Inspect the actual separations in the final PDF: Use Acrobat Output Preview or an equivalent tool to toggle Process Plates and Spot Plates. Confirm each expected spot plate, the artwork assigned to it, the absence of unwanted spots from hidden or placed content, and the print provider's total-area-coverage limit where relevant. A preview screenshot does not identify the checked PDF unless its version or SHA is recorded.
  6. Approve colour under the real production conditions: A separation preview can expose errors, but Adobe says it does not fully preview trapping, emulsion options, printer marks, halftone screens or resolution. Use the specified substrate, ink, coating or lamination and actual output route for a drawdown, contract proof or press approval; record the measurement method, tolerance, version, time and approver.

Scope and approval: This guide summarises Adobe's public spot-colour and separation tools and general prepress handoff controls. It is not a colour-library licence, ink formula, printability approval, colour-difference promise or final production acceptance. Ink names, plates, process conversion, Lab or CMYK alternate values, neutral density, total ink limit, tolerances and proof method must be confirmed by the buyer, supplier and actual print provider against the written job specification.

Packaging printing · Book printing · Request a quote

Frequently asked questions

If two swatches look the same on screen, can they share one spot plate? Do not assume so. Check the exact names, uses, physical ink target and final separations. They share a plate only when an approved alias or equivalent output rule explicitly maps them together.

Do standard Lab values guarantee an exact printed match? No. Lab can improve colour-managed preview and conversion consistency, but ink, substrate, finish, press and measurement conditions still affect the result. Approve a physical sample against a written tolerance.

Adobe — Use spot colors for printing · Adobe — Manage inks for separation · Adobe — Customize spot color appearance · Adobe Acrobat — Preview output

Top-down text-free prepress desk with overlapping transparent cyan, magenta and yellow shapes on one sheet and the same effect split into opaque vector and gradient regions on another
Technical guide | Global

The same appearance can hide a different PDF structure: six transparency and flattening checks

Shadows, transparent images, blend modes and opacity can remain as live transparency in a PDF or be divided into opaque vector and raster regions during output. Two PDFs may look similar on screen while carrying different structures and downstream RIP risks. Handoff should lock the transparency sources, blend space, PDF compatibility, flattening responsibility, spot and overprint interactions, and the exact preflighted version.

  1. Inventory transparency sources and affected objects: Check more than semi-transparent pictures. Opacity, blend modes, shadows, feathers, alpha channels, opacity masks, and the text, rules, images or spot colours beneath them can all be involved. Locate the affected areas in the source file and final PDF.
  2. Match the transparency blend space to the output: Adobe notes that Transparency Blend Space applies to spreads containing transparency; Document CMYK is normally used for print. Switching between RGB and CMYK blending can change screen and output appearance, so reproof every affected spread after a change.
  3. Agree whether transparency stays live or is flattened: PDF 1.4 and later can retain live transparency, while PDF 1.3, EPS and PostScript output trigger flattening. Do not choose from the words print PDF alone; confirm the PDF standard, RIP capability and final processing owner with the print provider.
  4. Keep an unflattened master and record the settings: Flattening divides overlaps into opaque pieces and may rasterize complex effects; it cannot be reversed after the file is saved. Keep the editable master and record PDF version, flattener preset, line-art and text resolution, and output time.
  5. Inspect flattening separately from overprint and spots: Flattener Preview can highlight transparency sources, affected objects and likely rasterized regions. Adobe also states that it is not a precise preview of spot colours, overprints or blend modes, so use Overprint Preview and separations checks for those behaviours.
  6. Preflight every page and lock the exact PDF: Check whether live transparency remains, whether type or hairlines became outlines or raster, whether spot colours survived, whether stitching risk is visible, and whether the output condition matches. Record filename, version or SHA, reviewer and time; save and test corrections as a new version.

Scope and acceptance: Transparency previews and PDF preflight describe the structure, settings and simulated appearance of the named file only. They cannot prove identical behaviour on every RIP, paper, ink set or press. The print specification, proof and approval process must decide where transparency remains live, where it is flattened and which raster resolution is acceptable.

book printing · packaging printing · request a quote

FAQ

If the PDF looks correct, is its transparency safe? Not necessarily. Similar screen appearance can hide live transparency, rasterized regions or another blend space; inspect structure, separations and the receiving workflow.

Must all transparency be flattened before print handoff? No. PDF 1.4 and later can retain live transparency. Flatten only according to the agreed PDF standard and RIP workflow, not as an irreversible guess.

Adobe InDesign: Transparency flattening overview · Adobe InDesign: Transparency blend space · Adobe Acrobat: Flattener Preview · Adobe InDesign: PDF compatibility and export options

Top-down text-free prepress colour desk with an abstract CMYK proof, different paper stocks, colour swatches, a gamut disc and an unbranded measuring device
Technical guide | Global

An ICC profile name is not a matched print condition: six PDF/X output-intent checks

A PDF/X output intent describes the final print condition for which a PDF was prepared, such as the process, substrate and destination colour space. It informs viewing, preflight and downstream colour management, but it does not automatically convert every colour in the file. Handoff should align the agreed condition, output intent, object colour, export settings, preflight result and approved file version.

  1. Confirm the real printing condition first: Ask the print provider for the process, substrate class, inks or colour set, applicable standard or characterization data, and any required ICC profile. Do not infer the condition from geography or a broad label such as coated stock.
  2. Treat the output intent as a destination description: Adobe describes an output intent as the final device or condition used to reproduce the PDF. It can override working spaces for viewing and printing, but it does not convert the colours in the PDF by itself.
  3. Distinguish a named condition from an embedded profile: An output intent may include a destination ICC profile or refer to a registered named output condition. Record which method is used, whether the profile is embedded, and how the receiver can resolve the same condition.
  4. Match the identifier and registry: Check Output Condition, Identifier and Registry against the agreed condition. ICC registry entries can connect conditions, characterization data and available profiles, while more than one profile can still be built from one data set with different separation choices.
  5. Inspect actual conversions and object profiles separately: An output intent does not prove that RGB, CMYK, gray or spot objects were handled as required. Review Color Conversion, Destination and Profile Inclusion Policy at export, plus provider requirements for spots, total ink and black generation.
  6. Preflight and lock the exact final PDF: Verify PDF/X conformance, output-intent values, object colour spaces and warnings in the delivered copy. Record filename, version or SHA, preflight profile, reviewer and time; save any correction as a new version and verify again.

Scope and acceptance: Output-intent and PDF/X preflight can support the declared exchange condition of the named file only. They do not approve the actual paper, ink, proof, RIP setup or production colour. The print provider and approved specification must still confirm the final condition, conversion strategy and tolerances.

book printing · packaging printing · request a quote

FAQ

Does an output intent mean the colours have already been converted? No. It describes the destination condition; conversion depends on the source objects, export settings and downstream colour management.

Can one ICC profile be used for every paper stock? Do not assume so. Process, substrate, measurement condition and separation strategy can require a different condition or profile.

Adobe Acrobat: Output intents in PDFs · Adobe InDesign: PDF output options · ICC: CMYK characterization data · ICC: Embedding and referencing profiles

Top-down text-free prepress desk with an open print proof showing nested coloured boundaries and crop marks for trim, bleed and media areas
Technical guide | Global

Finished size is more than width and height: six PDF page-box and bleed checks

A PDF can appear to have the right size while its trim, bleed and imposition boundaries disagree. TrimBox represents the finished page after trimming, BleedBox defines the area available for professional print bleed, and MediaBox contains the full page medium. Handoff also needs to confirm that edge artwork actually reaches the bleed, every page uses the intended boxes, and marks do not intrude into live or bleed content.

  1. Lock the finished size and orientation: Check width, height, portrait or landscape, single pages or spreads and page count against the approved book or packaging specification. Do not rely only on the viewer ratio or a size written in the filename.
  2. Treat TrimBox as the finished boundary: Inspect TrimBox page by page in Acrobat. It should match the approved finished size; unless the design requires it, one job should not contain mixed trim sizes, rotations or offsets.
  3. Confirm BleedBox surrounds TrimBox: BleedBox should extend beyond every edge that needs bleed and remain within MediaBox. The value must follow the product, binding, dieline and print provider requirement rather than a universal default.
  4. Check that artwork provides effective bleed: A box alone does not create bleed. Backgrounds, photographs and graphics intended to print to the edge must continue beyond TrimBox and fill the required bleed area; a white gap, short edge or transparent strip remains a trimming risk.
  5. Check printer marks separately from page boxes: Crop marks should indicate TrimBox from outside the page without crossing live or usable bleed content. Crop, bleed, registration and colour marks should follow the provider and imposition workflow and must not be added twice.
  6. Preflight and approve the exact final PDF: Check MediaBox, TrimBox, BleedBox, rotation, marks, effective bleed and page consistency throughout, then record the file version or SHA, reviewer and time. Page-box review does not replace imposition, proof, dieline or production approval.

Scope and acceptance: Page-box and bleed preflight supports the geometry and visible content of the named PDF only. Required bleed, binding compensation, dielines, imposition and trimming tolerance still depend on the approved specification and actual production condition. Correct the source and export a new PDF when the boundaries disagree.

book printing · packaging printing · request a quote

FAQ

Does a BleedBox prove the artwork has enough bleed? No. Edge artwork must actually extend past TrimBox and fill the required bleed area.

If the PDF has crop marks, do I still need TrimBox? Yes. Marks are visible guides; TrimBox is the PDF's finished boundary. They should agree and must not be duplicated or cross usable content.

Adobe Acrobat: PDF page boxes · Adobe InDesign: Bleed and slug areas · Adobe InDesign: PDF marks and bleeds

Top-down print font preflight desk with two text-free proofs comparing stable abstract glyph blocks with reflow and missing-glyph placeholders caused by substitution
Technical guide | Global

Visible type does not mean embedded fonts: six checks for print-ready PDF handoff

A PDF that looks correct on the creator's computer may not output with the same fonts elsewhere. If a font is missing, restricted from embedding or already substituted before export, character widths, line breaks, tables, page numbers and uncommon glyphs can change. A print handoff should therefore check the source document, the PDF font list, licensing and the delivered file's actual preflight result.

  1. Resolve missing and substituted fonts in the source: Run preflight before export and confirm every family, weight, italic, language glyph and linked asset. Do not carry missing-font warnings, boxes or temporary substitutions into the final PDF.
  2. Record the exact family, style and font identity: Fonts with the same family name can differ by format, PostScript name or version, and variable fonts may use specific axis values. Record the font actually used instead of only a generic family name.
  3. Inspect embedded or embedded-subset status in the PDF: Use Acrobat's document Fonts information to check every font used. A subset can preserve the glyphs and metrics already present, but later edits or new characters should be made in the source and exported as a new PDF.
  4. Separate embedding permission from permission to share font files: A font vendor can restrict embedding, and permission to embed in a protected PDF does not automatically permit sending the font software to a third party. Adobe Fonts activations are not copied by InDesign Package; check the EULA or valid desktop licences before sharing files.
  5. Preflight text and layout in the delivered PDF: Check page count, line endings, paragraph reflow, tables, folios, ligatures, equations, uncommon symbols and scripts such as Traditional Chinese, Arabic and Hebrew. Inspect the exact delivered PDF, not a screenshot or an earlier revision.
  6. Lock the version, export condition and approval boundary: Record the PDF version or SHA, export preset, preflight result, licensing status, reviewer and time. Screen review only supports the named file; RIP, proof and production approval remain separate decisions under the actual output condition.

Scope and acceptance: Embedding and preflight reduce substitution and reflow risk, but they are not a font licence, RIP guarantee or production approval. If a font is missing, embedding is blocked or the layout moves, correct the source and export a new version instead of patching the final PDF as though it were the approved original.

book printing · packaging printing · request a quote

FAQ

Is Embedded Subset automatically a failure? No. A subset can preserve the glyphs and metrics used in the current file, but new text or characters should be handled in the source document.

If a font is embedded in the PDF, may I also send the font file to the printer? Not automatically. PDF embedding rights and permission to redistribute font software are separate and must be checked against the font's licence.

Adobe Acrobat: Embedding fonts in PDFs · Adobe InDesign: Package files for output · Adobe Fonts: Package font files · Ghent Workgroup: PDF preflight compliancy

Top-down PDF overprint inspection bench with two text-free proofs comparing a white knockout with an incorrect overprint across abstract cyan and magenta shapes
Technical guide | Global

Visible on screen does not mean printable: six checks for a PDF overprint handoff

Overprinting keeps the ink beneath an object; a knockout removes it. Either can be intentional. Overprint may prevent white gaps from misregistration or create a controlled colour mix, but a wrong attribute can make a white object disappear or alter an overlap. A normal screen view is therefore not enough before a PDF handoff.

  1. Lock overprint or knockout intent object by object: Identify fills, strokes and fine rules that must overprint. Keep other overlaps as knockouts and record the choice in the file handoff.
  2. Inspect white and pale objects separately: A white object set to overprint can disappear at output. Check reversed text, white mark areas, pale rules and light elements inside transparency groups.
  3. Separate 100% black, black tints and rich black: In Adobe InDesign, the default 100% [Black] swatch can overprint automatically. Black tints, unnamed blacks and objects made black by effects do not necessarily follow that preference; large black areas also need a separate decision.
  4. Review separations in Output Preview: Choose a simulation profile relevant to the intended output, enable overprint simulation, then toggle process and spot plates to inspect white objects, overlaps, small type and rules.
  5. Lock the reviewed PDF and output condition: Record the PDF revision, creation time, output intent or simulation profile, reviewer and result. A screenshot is not a substitute for the source PDF, separations or traceable approval.
  6. Separate simulation, RIP checks and physical approval: Output Preview is a simulation. Final appearance can still vary with the RIP, output settings, ink, substrate and printing method, so proof or production acceptance must be defined separately.

Scope and acceptance: Overprint preview can expose critical risks, but it is not a print guarantee or an automatic certificate. Correct attributes in the source file, export a new PDF with version control, and have the print provider verify it against the actual RIP, substrate and production condition.

book printing · packaging printing · request-a-quote page

FAQ

If the PDF looks right in a normal viewer, is overprint correct? Not necessarily. Use a prepress view that simulates overprinting and exposes separations, then check it against the intended output condition.

Should every 100% black object overprint? No. Small black type and rules often overprint, but large solids, rich black, tints and special effects require a job-specific decision.

Adobe Acrobat: Preview overprint · Adobe InDesign: About overprinting · Ghent Workgroup: PDF preflight compliancy

Top-down spot-colour handoff bench with an unbranded spectrophotometer, three solid and tint ramps, white and black backings, and stacked proofs
Technical guide | Global

A spot colour is more than a Lab value: six checks for a CxF/X-4 handoff

A spot-colour name, screen swatch or one Lab target can omit critical conditions. ISO 17972-4:2018 defines CxF/X-4 for exchanging spectral measurements that characterise spot-colour inks and support more reliable proofing and printing. Its public scope is limited to paper-like substrates and the same ink-and-paper combination that was characterised.

  1. Lock identity and version: Keep a unique name or ID, file revision, creation date and approval owner.
  2. Lock the ink–substrate combination: Record the ink system, paper or board, surface treatment and intended printing condition; recheck applicability after any change.
  3. Deliver spectra and measurement conditions: Retain spectral data as well as Lab aims, instrument settings, measurement condition, backing and calibration information.
  4. Retain solids, tint steps and black-background measurements: These data can help describe tone behaviour and opacity; agree the required target for the job.
  5. Verify that the workflow reads the data: CxF/X-4 can travel with job data or in a PDF OutputIntent, but presence does not prove ingestion. A screen preview is not the reference.
  6. Separate aims, tolerances and results: Keep target values, acceptance tolerances, contract proof, production samples and final approval in distinct fields with change history.

Scope and acceptance: CxF/X-4 makes colour intent more portable and traceable, but it is not a universal ink recipe or an automatic certificate. Final acceptance still depends on the written specification, substrate, print condition, proofing system, viewing environment, tolerances and authorised approval.

book printingpackaging printingrequest-a-quote page

FAQ

Are a spot-colour code and Lab target enough? No. Confirm the ink–substrate combination, spectral and measurement conditions, version, tolerance and approval status.

Does embedding CxF/X-4 in a PDF guarantee a match? No. It improves data exchange; software support, materials, process control, proofing and production acceptance still require verification.

ISO 17972-4:2018 · International Color Consortium: CxF/X-4

Pre-press personnel check packaging die, book sample, bleed and crop marks
Prepress Documents | Global

Canva Print PDF Delivery Guide: How to check bleed, crop marks and preflight at once?

Ghent Workgroup released the "Generating PDF Using Canva" user guide on March 4, 2026. The focus is to assist design, education, marketing and small business users to prepare Canva files into PDFs suitable for professional production inspection. Canva officials also position PDF Print as a higher-resolution output for printing, and provide crop marks and bleed options.

The first five items delivered:Lock the size and bleed of the finished product first; choose PDF Print instead of the digital reading version; let the full-page background extend to the bleed, and keep important text and logos within a safe range; check the number of pages, page order, and version; list binding, paper, spot color, or surface craftsmanship separately in the specification sheet, and cannot just hide it in the screen effects.

Preflight boundaries:Checking crop marks and bleed does not mean that the file is ready for mass production. Before printing, the size, number of pages, picture clarity, font display, transparency effect and process layout must still be checked with the actual PDF, and the key content must be confirmed with the approval sample. The platform is responsible for output, and production release is still subject to product specifications and document inspection.

FAQ:Is PDF Print Enough? Not necessarily, it is a suitable starting point for output, and it still needs to be pre-checked according to the specific product. What else should be attached to the PDF? At least include the finished product size, bleeding, number of pages, binding, paper, craftsmanship, edition and proofing requirements.

Official information:Ghent Workgroup User Guide · Canva PDF Print Instructions. This article is an independent pre-press interpretation and does not imply cooperation with the above-mentioned institutions. Next step:View file preparation tools · Submit specifications and documents

The publishing house checks book and magazine specifications, proofing and delivery nodes for the 2026 Frankfurt Book Fair
Publishing Procurement|Global

Frankfurt Book Fair 2026 Pre-show Guide: How to prepare sample books and copyright materials in reverse order?

The Frankfurt Book Fair will be held from October 7 to 11, 2026. When a publishing house prepares to display sample books, copyright catalogs, or children's book samples, it should convert the exhibition period into a verifiable plan for specifications, proofing, mass production, transportation, and sign-off.

Preparation Checklist:Confirm the finished product size, number of pages, binding, paper, language, quantity, proofing method, packaging and receipt information item by item; the multilingual version must indicate the change page.

Opening day is a planning anchor, not a unified delivery commitment. File confirmation, proofing approval, mass production release, packaging, shipping, customs clearance/transshipment and receipt all require responsible persons, dates and buffers.

Official information:Frankfurter Buchmesse · Prepare quotation specification package

Commercial and packaging printing production reference drawings
Equipment and Efficiency

US printing companies purchase additional Speedmaster XL 106, packaging and commercial printing continue to work together to improve efficiency

HEIDELBERG announced on July 29 that Brodnax 21C Printers in Dallas, USA, has introduced Speedmaster XL 106-8P+L to expand its packaging and collectible card business. This company was founded in 1957 and has developed from a commercial printing factory into a marketing services company covering offset, digital, wide-format and promotional materials. In 2022, it established a packaging business. This investment is not simply to replace the old machine with a new one, but to achieve higher productivity and more stable quality under the same set of production management for different orders such as commercial printing, folding color boxes, catalogs and collection cards.

Official information shows that the device has a maximum speed of 21,000 pictures per hour and is equipped with automation functions such as Push to Stop, AutoPlate XL, Prinect Inpress Control 3 and Inspection Control 4. Intellistart 3 can organize the order change steps of the work to be produced and cooperate with automatic plate change to shorten the company's preparation time to less than 30 seconds. Online color and registration control can continuously measure at high speeds, and the inspection system uses cameras to identify printing defects, helping operators eliminate abnormal paper before problems become larger. UV and LED drying configurations also allow companies to process plastics, clear polyester, foil-clad cardboard and other composite materials.

The significance of this news to print buyers is not that "the faster the machine, the better". What is really worth asking is: how does the supplier control order changes, first pieces, color difference, registration, waste sheets and shutdowns; whether equipment data can form traceable production records; when repeated orders are encountered, whether paper, ink and color settings can be accurately recalled. If high-speed equipment does not have mature files, materials, operations and quality management, it will only amplify errors faster; conversely, when automatic plate change, online measurement, defect inspection and maintenance services are connected into a closed loop, speed will truly translate into stable delivery.

Therefore, when Gold Printing evaluates printing capacity, it not only looks at the equipment model and nominal speed, but also puts proofing confirmation, first article approval, process sampling inspection, abnormal isolation, maintenance records and delivery nodes into the same project control. This is the value that equipment investment should ultimately bring to customers: not a number on a promotional sheet, but predictable quality and delivery in complex, expedited or repeat orders.

Source:HEIDELBERG Original Announcement. The last two paragraphs of this article are Gold Printing’s interpretation of procurement and production management based on official information.

Printing spot color ink matching and process control reference chart
Spot color management

HEIDELBERG expands ChromaStar ink distribution system: spot color control is moving from experience to traceability process

Spot colors are commonly used in brand packaging to maintain consistent identification, but spot colors are also one of the most underestimated aspects of the printing process. When HEIDELBERG released the ChromaStar ink distribution system on July 16, he pointed out that cost pressure, increasingly complex processes and brand regulations are making spot colors a bottleneck for packaging printing. When the color matching relies on the experience of individual masters, the supply of spot colors is not timely, or the formula is not standardized, the factory is prone to waiting for ink, remixing, backlog of remaining ink, and batch color casts. The ultimate impact is not only on the cost of ink, but also on the scheduling and delivery of the entire production line.

ChromaStar adopts a modular design, covering different production levels such as X, S, M and P, and can extend from manual small batch preparation to highly automated industrial applications. Officials stated that the system supports traditional, UV and low-migration inks; precise metering, shortened mixing time and on-demand production help reduce inventory, waste and carbon emissions. ChromaStar S is targeted at scenarios where one to ten metric tons of spot color are used per year. More importantly, formula, measurement and color control can be connected to Saphira Cloud, Saphira Check and Saphira Control, making spot color definition, actual ink distribution, proofing and machine results a traceable process.

For customers, "making a certain color" does not mean completing spot color management. The real standards should include: whether the name and color number of the spot color are consistent, whether it is confirmed on coated paper or uncoated paper, which batch of paper and ink is used, what the color is after drying, what the allowable color difference is, and whether the spot color interacts with post-processing such as lamination or foiling. If these conditions are not written into the sample approval and production data, the same formula may show different results if it is replaced with another material, a process or an observation light source.

Therefore, the brand color item should be changed from "similar to visual inspection" to "joint approval of samples, formulas, materials and measurements." Ink dispensing automation can reduce human fluctuations, but it cannot replace the joint confirmation of standard samples by customers and factories. The actual practice of Gold Printing is to first confirm the color target and printing materials, and then use proofing or machine samples to establish approval standards. The formula, paper batch, surface treatment and inspection conditions are retained together to provide a repeatable basis for reprinting and cross-batch production.

Source:HEIDELBERG Original Announcement. The third and fourth paragraphs of this article are Gold Printing’s professional interpretation of brand spot color control.

European printing and packaging market data reference chart
Market Information

Intergraf releases 2026 European printing industry economic report: from market total to order structure

Intergraf released the ordering information for the "2026 European Printing Industry Economic Report" on June 18. This annual report is called "The Evolution of the European Graphics and Text Industry". The purpose is not to give only a market total, but to compare the structure, historical changes and national differences of the European printing industry in the same set of information. Its statistical scope includes print output, enterprises and employees, labor costs, import and export, as well as paper, ink, publishing, printing equipment, energy, postal and advertising markets that are highly related to printing.

The 2026 version adds market observations for 16 European countries, and provides a review of the European printing market and forecasts to 2030 by the research institution Smithers. Intergraf also compiles market data from the European Union, the United Kingdom, Norway, Iceland and Switzerland. The main statistical sources include Eurostat. The public key information also puts different printing processes, product categories and trade within and outside the EU together, allowing readers to distinguish whether market increases or decreases come from packaging, books and periodicals, commercial printing, or changes in processes and delivery methods.

For purchasers, industry reports cannot directly replace the quotation of a certain book, a certain color box or a certain batch of promotional materials. Market trends illustrate the general direction, but what really determines the cost is the size, quantity, paper, number of pages, number of colors, binding, surface craftsmanship, loss, delivery time and destination of the finished product. If you only use "paper price increases" or "European market growth" to explain prices, it is easy to misapply macro information to specific orders. A more reliable method is to first use reports to determine supply chain, production capacity and demand risks, and then use current paper, labor, energy and logistics data to verify project costs.

This type of report is more suitable for answering three questions: which subcategories still have stable demand; which countries’ import, export or labor costs are changing procurement paths; which processes are shifting from manual-intensive to digitalization and automation. Gold Printing uses official industry data as a background for market research, but does not treat forecasts as fait accompli, nor does it directly apply European averages to Asian production or global delivery. Any judgment involving price, tariff, transportation and delivery time must be rechecked back to the specific country, date and project conditions.

Source:Intergraf 2026 Annual Economic Report Announcement. The third and fourth paragraphs of this article are Gold Printing’s interpretation of how to use market data.

Intelligent printing order and document process reference diagram
Smart Business

European printing organization promotes Google UCP printing vertical standard, AI procurement begins to face customized production

Intergraf, Initiative Online Print and the German Print Media Industry Federation announced on May 13 that they will jointly promote the Google Universal Commerce Protocol's vertical standard for the printing industry. UCP is an open protocol that allows AI agents to assist consumers in completing purchases through search or in-app applications. However, existing retail models are mainly geared toward fixed SKUs, fixed prices, and limited options; customized printing is exactly the opposite. The same product will have different production paths depending on size, quantity, material, page count, process, document quality, and delivery time.

Three organizations pointed out that the current model does not fully handle print configuration, file upload, pre-press inspection, soft proof approval, withdrawal rights rules for personalized items, and dynamic delivery times based on equipment and post-processing capabilities. The proposed "dev.ucp.print" will try to add information such as real-time configuration and pricing, automatic document checking, soft proof approval, dynamic delivery, B2B pricing, variable data printing, FSC/PEFC and carbon footprint. The plan is to complete requirements, drafts and European consultations in 2026, then submit specifications to Google and advance the pilot in 2027.

The implications of this incident for printing websites and GEO are very direct: future agents cannot just read "we can print books and package them", but must understand computable and verifiable specifications. Dimensional units, bleeds, paper, binding, surface finish, quantity ladders, delivery locations, file versions and approval status all need to have consistent names and clear relationships. If the website only has marketing slogans, AI can only give vague answers; if complex projects are mistakenly compressed into fixed products, wrong prices, wrong dates, or wrong versions may occur without project confirmation.

Therefore, smart procurement does not mean eliminating manual labor, but placing manual judgment at the correct node. Standard specifications can be read and pre-checked by the system, while special materials, colors, structures and delivery risks still need to be confirmed by engineers; responsibility records must also be kept for soft proofs, physical samples and final document approval. The purpose of Gold Printing in building printing knowledge, cases and structured inquiries is to allow customers, customer service, engineering staff and intelligent agents to use the same set of understandable data, rather than allowing AI to bypass necessary production controls.

Source:Intergraf, IOP and BVDM joint announcement. The third and fourth paragraphs of this article are Gold Printing’s interpretation of printing GEO and intelligent procurement processes.

Printing Technology Awards and Project Evaluation Reference Chart
Technical Observation

PRINTING United Announces 2026 Pinnacle Technology Awards: How to Turn Innovation Lists into Procurement Judgments

PRINTING United Alliance announced the winners of the 2026 Pinnacle Awards on June 24. Officials stated that the judges reviewed the participating projects from the perspectives of innovation, function and industrial impact, and awarded a total of 71 awards, including 25 output products, 32 non-output products and 14 technology awards. The winning solution covers equipment, materials, software, workflow and post-processing, and some of the technologies will be displayed at the PRINTING United Expo in Las Vegas from September 23 to 25.

The value of this type of award is to allow the industry to quickly see what problems technology suppliers are solving: more automatic production scheduling, more stable color, less material waste, more flexible digital output, easier-to-produce efficiency-enhancing processes, and software that connects prepress, printing, post-processing and data. However, the award itself only means that a certain product or technology has been affirmed by the review. It does not mean that any configuration, any operator, any material and any order can automatically obtain the same result.

If printing buyers want to turn technical news into purchasing decisions, they must ask at least five more things: under what production conditions the equipment or software works; which papers, inks, sizes and processes can be processed; whether the samples represent daily mass production rather than exhibition demonstrations; whether operation, maintenance and consumables are sustainable locally; whether the so-called improvement of speed, quality or automation can fall into the acceptance data of this project. For printing plants, it is also necessary to confirm whether new technologies can be integrated into existing processes, rather than forming another island that requires manual repeated input.

Therefore, Gold Printing views the award list as a technology radar rather than a procurement conclusion. Before actual adoption, it still needs to go through samples, material testing, actual work orders, quality records and cost accounting. The promise to customers cannot be written as "because the equipment has won awards, so the product must be better." Instead, it should specify what acceptable improvements this technology has brought to which types of products in terms of color, size, surface effect, loss, speed, or traceability.

Source:PRINTING United Alliance 2026 Pinnacle Awards Announcement. The second to fourth paragraphs of this article explain Gold Printing’s technical procurement.

Printing and Packaging Industry Conference and Brand Application Reference Picture
Industry Conference

PRINT DIGITAL CONVENTION 2026 set a record of more than 1,700 professional visitors

PRINT DIGITAL CONVENTION 2026 was held in Dusseldorf from June 16 to 17. The organizer announced that there were more than 1,700 professional visitors present, setting a new record for the event. This conference and exhibition is located between two drupa sessions, with participants not only from print production, but also from the fields of branding, packaging, marketing, creativity, e-commerce and technology. The new venue, expanded partner network, experiential displays and conference content are regarded by the organizers as important reasons for the increase in attendance this year.

The official summary specifically mentioned that e-commerce, customer experience, data-driven communication, packaging and artificial intelligence are no longer regarded as separate topics from each other, but are understood in the same communication and production chain. Brands need to go beyond just printing out a box or catalog, and align the physical print with online stores, events, membership profiles, personalized content and delivery rhythms. Printing services therefore gradually extend from a single processing link to the overall coordination of content versions, structures, materials, batches and usage scenarios.

For buyers, the conference hot spot should not directly become "AI must be added to all products" or "the more digital the more advanced". Whether a printing plan is reasonable or not still depends on the purpose of use: books must consider reading, durability and binding; packaging must consider protection, display, regulations and unpacking; event materials must consider time, version and on-site distribution; personalized printing must deal with data accuracy, privacy, random inspection and isolation of wrong parts. Technology only has commercial value when it solves specific problems and can be accepted.

The real signal of this event is that the number of decision-makers on printing projects is increasing. Design, purchasing, branding, engineering, marketing and logistics often need to be agreed upon together, and factories must translate this language into clear production specifications. Gold Printing requires confirmation of the purpose, size, material, process, quantity, version, approval sample and delivery node at the beginning of the project. The purpose is to avoid each department understanding it independently and ultimately having the production end bear the responsibility for errors. Cross-field cooperation is not about adding slogans, but about reducing the loss of information during handover.

Source:drupa/Messe Düsseldorf official news. The third and fourth paragraphs of this article are Gold Printing’s interpretation of printing project management.

Global Exhibition|West Africa

Propak West Africa 2026|Lagos Packaging, Plastics and Printing Technology Exhibition

Official time and location:September 8-10, 2026, Landmark Center, Lagos, Nigeria, 9:30-17:00 daily.

Exhibition scope:Packaging, plastics, printing, food and beverage production technology, including machine demonstrations, materials, supplier comparisons, automation and sustainable production issues. Printing and packaging suppliers entering the West African market should also check local equipment services, consumable supplies, import and delivery conditions.

Official information:Propak West Africa Visiting Information. If the exhibition date or venue is updated, please refer to the organizer’s announcement.

Global Exhibition|South Africa

Africa Print Johannesburg 2026/FESPA Africa|Johannesburg Printing Exhibition

Official time and location:September 8-10, 2026, Gallagher Convention Center, Johannesburg, South Africa, 9:00-17:00 daily.

Exhibition scope:Commercial printing, digital printing, label and packaging printing technology, and will be held concurrently with FESPA Africa, Sign Africa and Modern Marketing. Suitable for tracking wide formats, signs, digital equipment, inks, media and post-processing solutions in Africa.

Official information:Africa Print Johannesburg 2026

Global Exhibition|North America Label

LOUPE Americas 2026 (formerly Labelexpo Americas)|Chicago Label and Packaging Printing Exhibition

Official time and location:September 15-17, 2026, Donald E. Stephens Convention Center, Chicago, USA.

Exhibition scope:Flexo, digital and hybrid printing equipment for labels, flexible packaging and folding cartons, and covers pre-press plate making, post-processing, automation, printing materials, ink coatings, die-cutting tools, inspection and RFID. Buyers should compare the on-site demonstration with their own materials, speed, order exchange and quality acceptance conditions.

Official information:LOUPE Americas 2026

Global Exhibition|North American Printing

PRINTING United Expo 2026|Las Vegas Comprehensive Printing Exhibition

Official time and location:September 23-25, 2026, North and Central Halls, Las Vegas Convention and Exhibition Center, USA.

Exhibition scope:Commercial printing, packaging, labels, apparel and textile printing, wide format, mail, workflow, software, equipment and supplies. Relevant news should continue to follow up on new product releases, educational agendas, live demonstrations and post-show technical summaries, not just reprint the opening news.

Official information:PRINTING United Expo official schedule

Global Exhibition|China’s entire printing industry chain

All in Print China 2026 The 10th China International All-Print Exhibition|Shanghai

Official time and location:October 12-16, 2026, Shanghai New International Expo Center.

Exhibition scope:Prepress, printing equipment, postpress and packaging processing, paper and substrates, ink, label materials, other consumables, parts and infrastructure, software and services, covering the complete printing industry chain. The official theme focuses on digitalization, intelligence, green production and industrial integration.

Official information:All in Print China 2026 Exhibition Introduction

Global Exhibition|Japanese Packaging

TOKYO PACK 2026 Tokyo International Packaging Exhibition|Tokyo

Official time and location:October 14 to 16, 2026, Big Sight East Halls 1 to 3, 7 and 8, Tokyo, Japan, 10:00 to 17:00 every day.

Exhibition scope:Packaging materials, packaging machinery, packaging material processing, food machinery, related equipment, environmental response and logistics technology. Buyers of cartons, labels, flexible packaging and export packaging should pay special attention to material reduction, circular design, inspection and automated cartoning.

Official information:TOKYO PACK 2026 Reminder Summary

Global Exhibition|North American Packaging

PACK EXPO International 2026|Chicago Packaging and Processing Exhibition

Official time and location:October 18-21, 2026, McCormick Place, Chicago, USA.

Exhibition scope:Packaging and processing machinery, automation, materials, containers, printing, labeling and supply chain solutions, targeting multiple markets such as food and beverage, medicine, cosmetics, industrial products and e-commerce. Procurement evaluation needs to check actual production capacity, line changeover, cleaning, maintenance, consumables and local services.

Official information:PACK EXPO International 2026 exhibition information

Global Exhibition|Digital Printing

Hunkeler Innovationdays 2027|Digital Printing and Post-Processing Exhibition in Lucerne, Switzerland

Official time and location:February 22-25, 2027, Lucerne Exhibition Center, Switzerland.

Exhibition scope:High-speed digital printing, web processing, online and near-line post-processing, book and direct mail production, quality inspection and automated workflow. This type of real-machine connection exhibition is more suitable for observing the data and process collaboration between devices, rather than just looking at the speed of a single machine.

Official information:Hunkeler event schedule

Global Exhibition|Paper Film Processing

ICE Europe 2027|Munich Paper, Film and Foil Converting Exhibition

Official time and location:March 9-11, 2027, Munich Exhibition Center, Germany.

Exhibition scope:Coating, laminating, drying, curing, slitting, rewinding, flexo printing, gravure printing, testing and processing consumables for paper, film, aluminum foil and non-woven materials. Ideal for tracking converting equipment and material compatibility for packaging, labeling, and specialty materials projects.

Official information:ICE Europe 2027

Global Exhibition|Wide Format and Specialty Printing

FESPA Global Print Expo 2027|Munich, Germany

Official time and location:April 6-9, 2027, Munich, Germany.

Exhibition scope:Wide format digital printing, screen printing, signage, textile and apparel printing, personalization, body wrap and related equipment, inks and printing media. The official timeline of the FESPA Awards has confirmed that the works will be displayed at this exhibition.

Official information:FESPA Awards 2027 Official Timeline

Global Exhibition|North American Printing

PRINTING United Expo 2027|Las Vegas

Official time and location:September 14-16, 2027, Las Vegas Convention Center, USA.

Exhibition scope:Integrated printing technology, commercial and publishing printing, packaging, labels, wide format, textiles, software, automation and consumables. Officials have announced the cities and dates for several future editions, and this site should continue to add open registration, agenda, new products and post-show reports.

Official information:PRINTING United Expo future schedule

Global Exhibition|Southeast Asia

PACK PRINT INTERNATIONAL 2027|Bangkok Packaging and Printing Exhibition

Official time and location:September 15-18, 2027, BITEC Hall 100-101, Bangkok, Thailand.

Exhibition scope:Packaging and printing machinery, labels, digital printing, flexible packaging, corrugated, automation, materials, software and complete production solutions, covering Southeast Asian buyers and supply chains. The organizer has released the 2027 exhibition date and venue information.

Official information:PACK PRINT INTERNATIONAL 2027 Exhibition Overview

Global Exhibition|European Packaging

FACHPACK 2027|Nuremberg Packaging, Technology and Processing Exhibition

Official time and location:September 21-23, 2027, Nuremberg Exhibition Center, Germany.

Exhibition scope:Product packaging, packaging materials and accessories, packaging production, mechanical technology, logistics, packaging systems and packaging printing. The theme of 2027 is "Transition in Packaging", focusing on digitalization, EU regulations, material innovation and sustainable transformation.

Official information:FACHPACK 2027 official website

Global Exhibition|North American Packaging

PACK EXPO Las Vegas 2027|Las Vegas Packaging and Processing Exhibition

Official time and location:September 27-29, 2027, Las Vegas Convention Center, USA.

Exhibition scope:Packaging and processing equipment, materials, automation, controls, printing and labeling for multiple vertical markets. Officials have announced the exhibition date, venue and subsequent registration arrangements; relevant reports should be supplemented with exhibitors, educational agenda and key technologies before the event.

Official information:PACK EXPO Las Vegas 2027

Global Exhibition|European Label

LOUPE Europe 2027 (formerly Labelexpo Europe)|Barcelona

Official time and location:October 5-8, 2027, Fira Gran Via, Barcelona, Spain.

Exhibition scope:Labels, flexible packaging, folding cartons, printing and converting equipment, materials, digital enhancements, post-processing, automation and AI workflows. The brand has been updated from Labelexpo to LOUPE, but the old name should still be retained for historical search terms.

Official information:LOUPE Europe 2027 official introduction

Global Exhibition|Latin America

Andina Pack 2027|Bogotá Processing and Packaging Technology Exhibition

Official time and location:November 9-12, 2027, Corferias, Bogota, Colombia.

Exhibition scope:Processing, packaging, materials, printing, labeling, testing and automation solutions for food, beverages, pharmaceuticals, cosmetics and industrial products. Website content should be continuously supplemented with official exhibitors, agenda and post-show technical news.

Official information:Andina Pack 2027 Official Website

Global Exhibition|North American Packaging

PACK EXPO East 2028|Philadelphia Packaging and Processing Exhibition

Official time and location:March 21-23, 2028, Philadelphia, USA. PMMI has announced the date on the PACK EXPO official exhibition network.

Exhibition scope:Packaging and processing equipment, materials, automation, labeling and related services for the East Coast of the United States. The specific exhibition hall, opening hours and exhibitor information should be completed after the organizer updates it, and no guessing in advance is allowed.

Official information:PMMI PACK EXPO official exhibition calendar

Global Exhibition|World Printing

drupa 2028|Düsseldorf World Printing Technology Exhibition

Official time and location:May 9 to 17, 2028, Halls 1 to 17 and outdoor exhibition areas of the Dusseldorf Exhibition Center in Germany.

Exhibition scope:Prepress, printing machinery, digital and traditional printing, paper, ink, plates and other consumables, packaging conversion, binding post-processing, automation, software and cross-media solutions. drupa is a core global printing technology exhibition held every four years. This year, it has been officially confirmed that it will be changed to nine days.

Official information:drupa 2028 Save the Date

Global Exhibition|Mexico Packaging

EXPO PACK México 2028|Mexico City Packaging and Processing Exhibition

Official time and location:June 6-9, 2028, Mexico City, Mexico. PMMI has announced the save date, and detailed venue and opening information awaits the official page in the future.

Exhibition scope:Packaging and processing machinery, materials, containers, labels, printing, automation and supply chain solutions serving the Mexican and Latin American markets. Unannounced exhibitors or agendas are not allowed to be filled in by oneself.

Official information:PMMI PACK EXPO official exhibition calendar

Global Exhibition|North American Printing

PRINTING United Expo 2028|Atlanta, USA

Official time and location:October 18-20, 2028, Georgia World Congress Center, Atlanta, USA.

Exhibition scope:Commercial, packaging, labelling, wide format, textile, workflow, equipment, software and printing supplies. The date and city have been announced by the organizer, and the specific exhibition hall area, exhibitors and agenda will be officially updated later.

Official information:PRINTING United Expo future schedule

Publishing and Book Fair|Hong Kong, China

Hong Kong Book Fair 2026|A seven-day reading event, bringing publishing, culture, sports and leisure into the same convention and exhibition center

Official time and location:The 36th Hong Kong Book Fair is hosted by the Hong Kong Trade Development Council and will be held at the Hong Kong Convention and Exhibition Center from July 15 to 21, 2026. It will be held concurrently with the Hong Kong Sports and Leisure Expo and Snack World. The official announcement of this year's annual theme is "Cultural Heritage and Enjoyable Reading Journey", allowing publishing, reading promotion, cultural exchanges and urban leisure to connect with each other during the seven-day event.

Information value:A book fair is not a retail place just for readers to buy books. For publishers, authors, educational institutions, cultural brands and printing purchasers, they need to prepare new books, catalogs, posters, tickets, exhibition racks, souvenirs and on-site guides before the exhibition; during the exhibition, they need to deal with replenishment, event revision and multilingual materials; after the exhibition, there will be needs for reprinting, authorization, reader data and overseas promotion. Including book fairs in industry information can bring book printing, cultural activities and brand communication back to the same content chain.

Reading and purchasing reminder:Relevant content should be divided into pre-exhibition schedule, in-exhibition observation and post-exhibition summary and continuously updated, with official announcements and interpretations on this site clearly marked. When it comes to exhibitors, speakers, sales data or event arrangements, the latest page of the Hong Kong Trade Development Council shall prevail; printing suppliers should not write down unannounced exhibition relationships or cooperation results as facts.

https://mediaroom.hktdc.com/tc/pressrelease/detail/20995/

Advertising and Branding|Cannes, France

Cannes Lions 2026|When global creativity and brand decision-making gather in Cannes, how can printing undertake offline experience

Official time and location:The Cannes Lions International Festival of Creativity will be held from June 22 to 26, 2026 at the Palais des Festivals and surrounding event spaces in Cannes, France. The event gathers practitioners in advertising, branding, media, creativity, technology and marketing. The official website provides itinerary, venue and participation information.

Information value:For the printing and packaging industry, the focus of the Creativity Festival is not just awards. Brands need invitations, membership information, conference brochures, outdoor advertising, pop-up store materials, gift boxes and limited edition souvenirs before and after the event; when the design goes from screen to site, size, paper material, color, surface technology, installation method and sustainability requirements will all affect the final experience. Incorporating advertising and brand activities into the information database can help purchasers see possible short delivery times, multiple versions, and cross-regional collaboration needs earlier.

Reading and purchasing reminder:Follow-up reports should distinguish the official agenda, award information, brand public cases and production interpretation of this site. Unauthorized brand names, work, or partnerships cannot be rephrased as Gold Printing performance; what can be openly discussed are common methods of file versioning, color approval, on-site installation, shipping, and recycling of event materials.

https://www.canneslions.com/festival/plan-your-trip

Culture and Art|Hong Kong, China

Art Basel Hong Kong 2027|Asia-Pacific modern and contemporary art gathers in Hong Kong, publishing and exhibition materials are available simultaneously

Official time and location:The official page of Art Basel has announced that the next date of the Hong Kong exhibition will be March 25-27, 2027, and the venue will be Hong Kong. The exhibition focuses on Asian and global modern and contemporary art and connects galleries, artists, collection institutions, curators, cultural organizations and the public. Subsequent opening hours, previews and exhibitor lists are subject to official updates.

Information value:The behind-the-scenes work of an art exhibition involves a vast amount of demanding printing: artist books, portfolios, exhibition catalogues, collection certificates, wall text, guide brochures, invitations and secure packaging. These contents often have stricter requirements for color gradation, black-white-grey balance, paper feel, binding opening and closing, edition numbering and transportation protection than ordinary promotional materials. After exhibition information is interconnected with printing knowledge and case sharing, purchasing personnel can directly track sample approval and delivery backlog from the event date, instead of processing finished products before the event.

Reading and purchasing reminder:This site only quotes the official announced date and exhibition positioning; the list of galleries, artists and works needs to wait for the organizer to release it. Any artistic images, names and brand logos are copyrighted or licensed and cannot be copied directly into printed samples or promotional pages just because the event is public.

https://www.artbasel.com/hong-kong?lang=en

Sports Activities|Hong Kong, China

Hong Kong Rugby Sevens 2026|How the three-day event drives tickets, guides, gifts and branded on-site materials

Official time and location:The 2026 Hong Kong Sevens will be held in Hong Kong from April 17th to 19th. The official schedule lists three days of competition, youth group events, live performances and final arrangements. The time of sports activities is fixed and the flow of spectators is concentrated. Any on-site materials must be signed, counted, partitioned and the spare quantity confirmed before admission.

Information value:Large-scale sports events will use tickets and certificates, venue guidelines, schedules, sponsor displays, catering packaging, fan gifts and VIP reception materials. Different sponsors, events, languages ​​and entry areas will form multiple versions; if you only sort by "game start time", venue layout, security inspection, packaging and staff training will be ignored. Urgent delivery, version control and box label management that are common in printing cases can all be found in the actual usage background of this type of activity information.

Reading and purchasing reminder:This site provides a professional connection between events and printing needs. It does not mean that Gold Printing is an event supplier or partner. The schedule, teams and admission arrangements should be checked back on the official page; the printing of sponsor logos, team images and event names must be authorized first.

https://hksevens.com/assets/uploads/uploads/gallery/260407_HK7s_2026-schedule-v1.pdf
